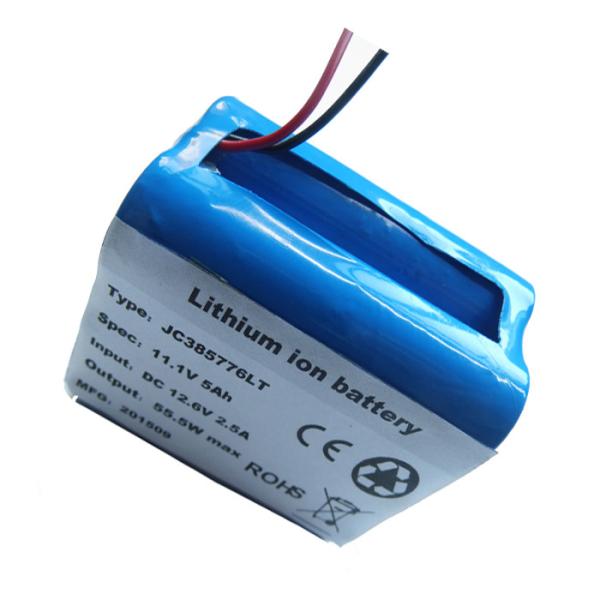

CE Lightweight 310g 11.1V 3S2P 5Ah Li Battery Pack

Brand Name : JC

Model Number : 11.1V

Certification : CE ROSH SGS

Place of Origin : China

MOQ : 10 PCS

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 3000 pcs/month

Delivery Time : 5~45 days

Packaging Details : Negotiable

Type : Lithium battery

Charge voltage : 12.6V

Nominal voltage : 11.1V

Capacity : 5Ah

Max discharge current : 5A

Cycle life : 500 times

Discharge temp : -40℃~+60℃

Warranty : one year

Contact Now

11.1V 5Ah rechargeable li-ion battery with SMBUS communication for smart robot

Our robot battery use Korea or Japan brand cells which has some advantage as :

Higher Capacity and Stable Discharge Voltage, high continuous discharge rate
Light weight, small size and high performance
Small internal resistance
Outstanding Discharge properties and Storage Capacity
Pollution free, long cycle life
No memory effect
Factory price, high quality

We can make customed all kinds of lithium ion or li-polymer batteries by the requirements from customer as we have a strong R&D team.

11.1V 5Ah rechargeable li ion battery pack with with low temperature cells for power tools

NO.	Items		Specifications
1	Charge voltage		12.6V
2	Nominal voltage		11.1V (3S2P)
3	Initial impedance		120mΩ
4	Nominal capacity		5Ah
5	Minimum capacity		4.9Ah
6	Low-temperature capacity		≥3.0Ah	When the battery is standard charged, it shall be put into chamber at ( -40±2 )℃for 8-16hrs,then discharged at 0.2C₅A (1A) constant current to7.5V
7	Charge current		Standard Charging::0.2C₅A (1A) Rapid charge:1.0C₅A (5A) Max
8	Standard Charging method		1A(0.2C₅A) CC(constant current)charge to12.6V,then CV(constant voltage 12.6V)charge till charge current decline to ≤50mA(≈0.01C₅A)
9	Charging time		Standard Charging:6.5hours(Ref.) Rapid charge: 2.5hours(Ref.)
10	Max.discharge current		5A(1C₅A)
11	Discharge cut-off voltage		7.5V
12	Shelf life		2years
13	Cycle life (0.2C₅A/0.2C₅A)		400 times,≧80%DOD
14	Operating temperature		Charging: 0℃~45℃ Discharging:-40℃~+60℃
15	Storage temperature	Less than 1 month	-10℃~+45℃		Percentage of recoverable capacity :85%
		Less than 6 month	-40℃~+35℃
16	Pack Weight		Approx:310g
17	Pack Dimension		Length: Max76.00 mm Width: Max57.00mm Thickness:Max 38.00mm

CE Lightweight 310g 11.1V 3S2P 5Ah Li Battery Pack
